3000PLUS Optical Heat Detector
- Enhanced Sensitivity to a Wide Range of Smoke Types
- High Resistance to False Alarm
- Ultra Low Quiescent Current
- Latching ‘Fire’ LED
- Range of Base Options
- Approved to EN54 Part 5 & 7
Product Details
The Protec 3000PLUS series of fire detectors, form a range of elegantly designed, aesthetic, low profile detectors which blend unobtrusively into modern working environments. All detectors incorporate a discreet anti tamper security latch and latching ‘FIRE’ LED indicator with the facility to activate a remote indicator unit. All detectors are interchangeable with a variety of base options.
This thermally enhanced detector provides efficient, reliable detection utilising combined light scatter and heat sensing principles, permitting the device to detect types traditionally more suited to ionisation detectors, providing the fastest response to a fire, whilst drastically reducing common false alarm problems to which optical only detectors may be susceptible.
Providing early warning of a fire condition for all types of fire, the 3000PLUS/OPHT is an ideal general purpose fire detector for offices, shops, corridors, factories, warehouses & computer rooms.
Fully approved to the latest EN54 Part 5 & 7 standards by Intertek.
BASE Options
3000PLUS/BASE
– Low profile common mounting base
3000PLUS/FFBASE
– Fast fixing semi recessed base
Note – base options above are included in the product approvals.
Environment | -10°C to 55°C 95% R.H (non condensing or icing) |
Ingress Protection | IP21C |
Weight (excluding base) | 98g |
Operating Voltage | 16-30V dc |
Quiescent Current | 25μA (average) at 24V dc |
Alarm Current | 50mA Maximum (must be limited by control panel) |
Detection Principles | Optical light scatter and heat sensor |
Indication | Red alarm LED (360° viewing angle) |
Dimensions (mm) | 98.60ø x 56.50H |
Relevant Standard | EN54 Part 5 & 7 |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
- 3000 Manual Call PointView Product
- 3000PLUS Optical Smoke DetectorView Product
- 3000PLUS 56°C Fast Response Heat DetectorView Product
- 3000PLUS 64°C Medium Response Heat DetectorView Product
- 3000PLUS Surface Mount Detector BaseView Product

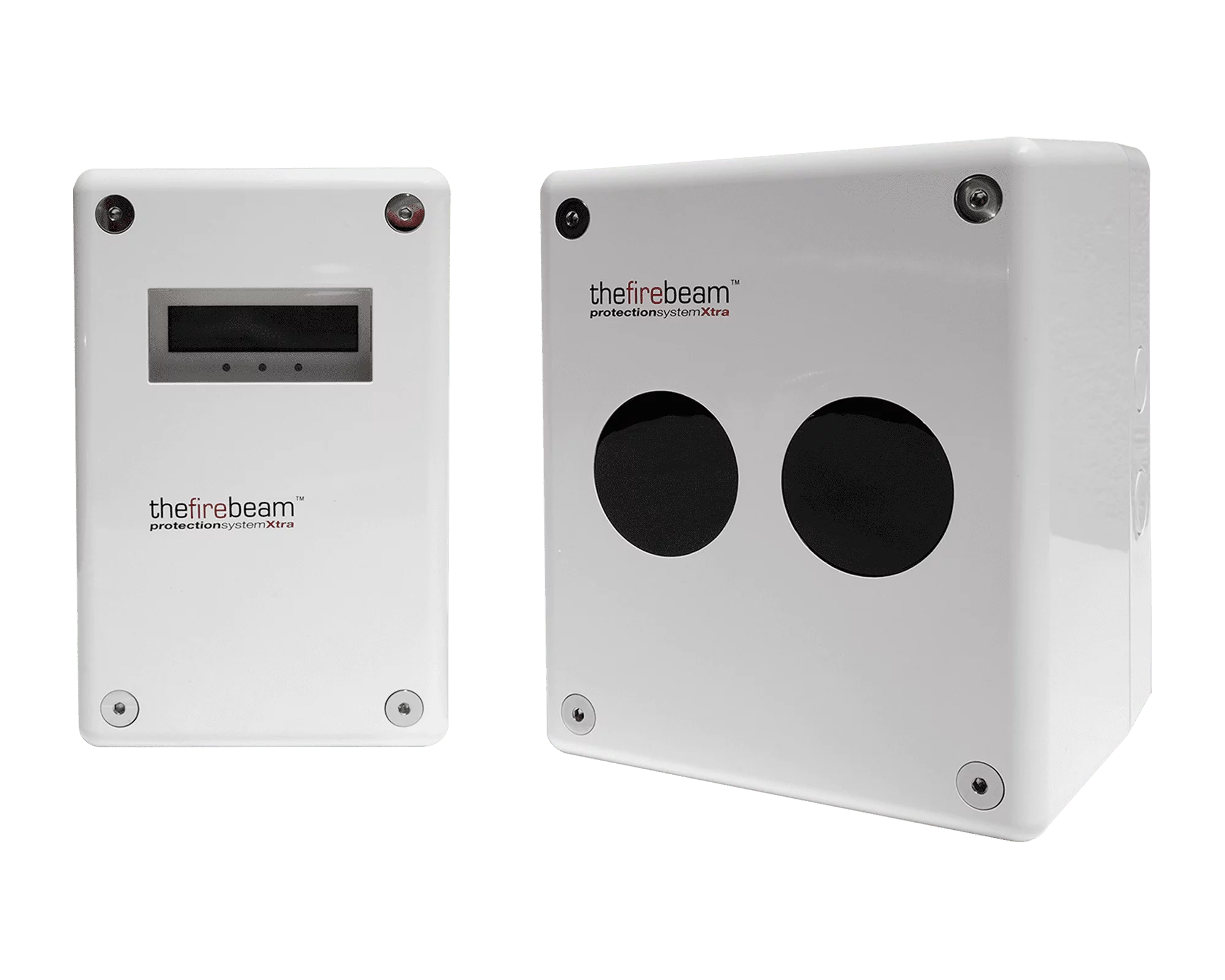

- 3000 Fire Beam DetectorView Product
