6000 Monitored Input/Output Fire Alarm Interface
- Protec Algo-Tec™ 6000 Protocol
- Loop Powered
- Monitored Input Interface
- Clean Contact Output Interface
- Integral Short Circuit Isolator
- Optional Delayed Input Mode
- Optional Non Latching Alarm Mode
Product Details
The Protec 6000 series MICCO is a loop powered fault monitored input and a volt free clean contact output interface. An on board isolator is provided which protects against loop short circuits on either the incoming or outgoing loop connections.
Under normal circumstances the input is terminated with an End of Line resistor. If the correct value of resistance is placed across the monitored input, theMICCO will activate the associated 6000 control panel within 3 seconds. A PCB link may be removed which will delay a sustained activation by 14 seconds, designed for use when interfacing to sprinkler systems. The input is fully monitored for open and short circuit wiring faults.
Environment | -10°C to +50°C (95% R.H. non condensing) |
Ingress Protection | IP41 |
Weight (excluding base) | 109g |
Loop Powered | Yes |
Loop Standby Load | 0.55mA (Average), 2mA (Peak) |
Loop Alarm Load | 2.2mA (Average), 5mA (Peak) |
Loop Voltage | 16 – 28V |
Isolator | Yes |
Inputs | Input monitored for short / open circuit fault and alarm |
Outputs | Single pole changeover rated for 8A maximum at 30V DC non inductive |
Dimensions (mm) | 86.7(H) x 147.3(W) x 10(D) |
Device Protocol | Algo-Tec™ 6000PLUS |
Relevant Standard | EN-17 & 18, CE Marked |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products


- Interface Back BoxView Product
- Single Channel Ancillary Powered Zone Alarm InterfaceView Product
- Single Channel Loop Powered Zone Alarm InterfaceView Product
- 2 Channel Ancillary Powered Zone Alarm InterfaceView Product
- 2 Channel Input/Output InterfaceView Product
- 2 Channel Loop Powered Zone Alarm InterfaceView Product

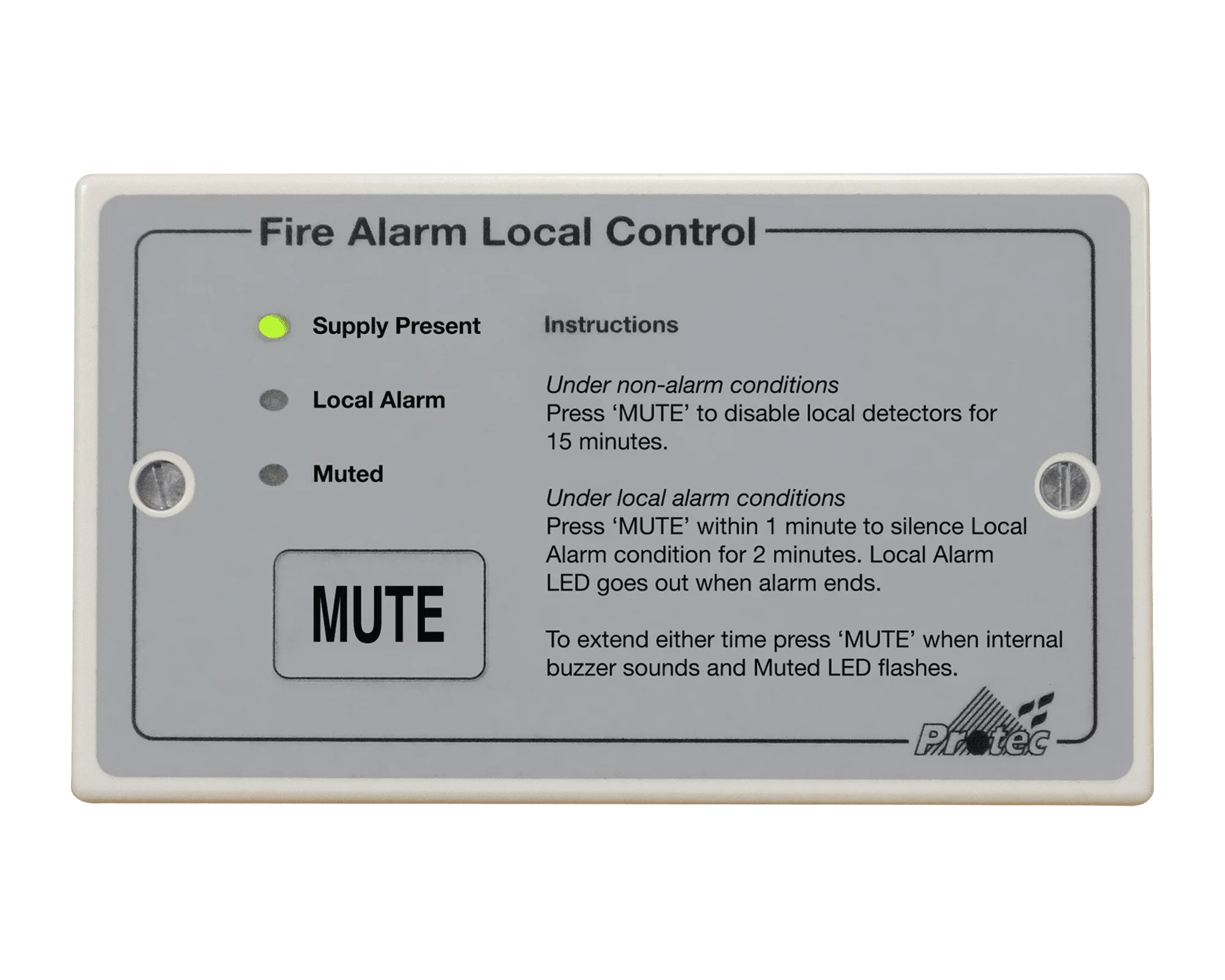

- 6000 Local Control ModuleView Product
