24 Volt 1 Amp Power Supply
- High Efficiency (Reduces Power Bills and Carbon Footprint)
- High reliability
- Cost effective switch mode technology
- Intelligent Battery Charging Monitoring
- Deep Discharge Protection
- Remote Fault Monitoring
- Full Rated Load Plus Additional Current for battery charging
- Approved to the Latest EN54 Part 4 Requirements
Product Details

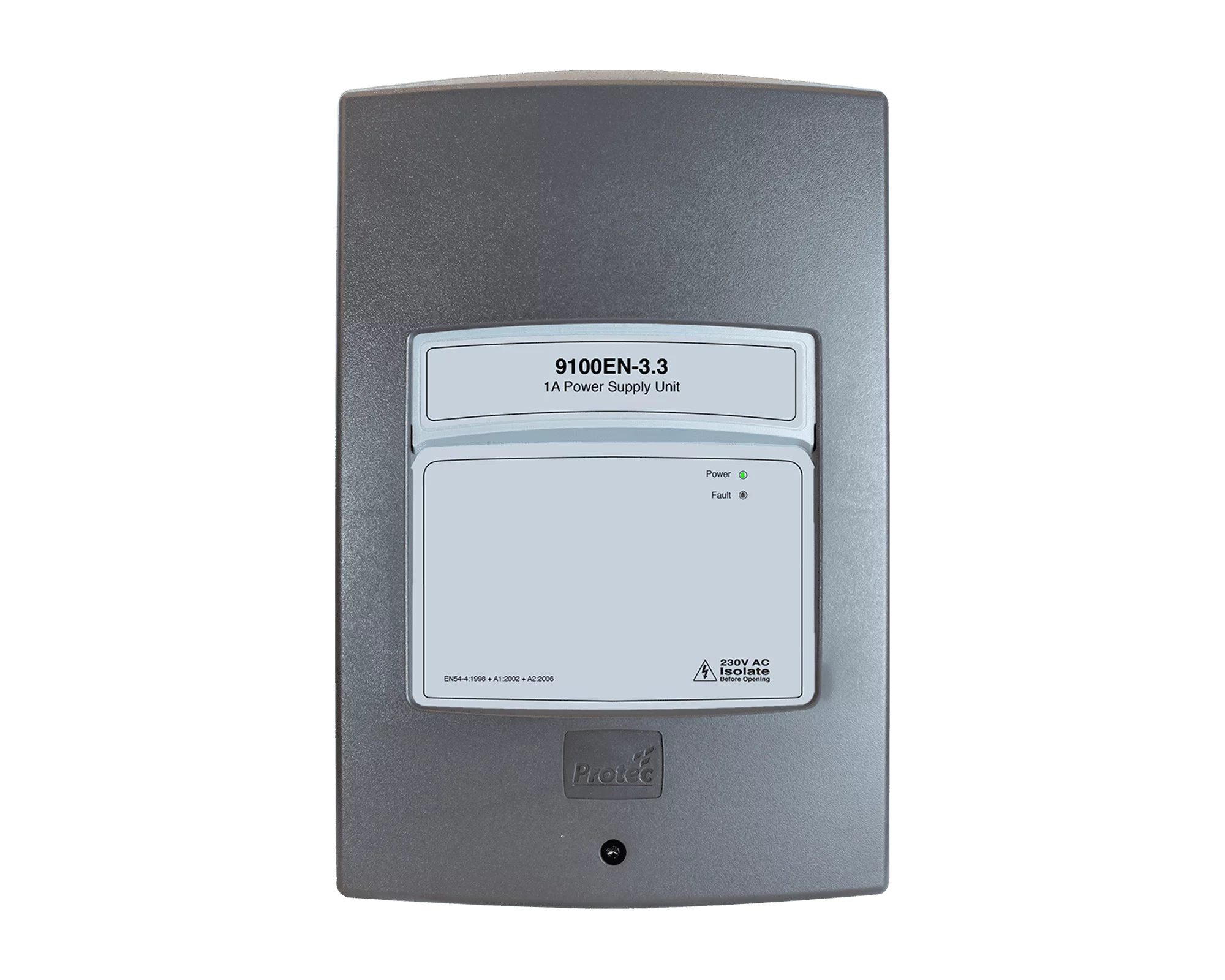

The Protec 9100EN 1A/ 24 volts switch mode power supply has been designed for use in building fire systems and access control applications. This power supply is fully compliant and approved to the latest EN54 Part 4.
The 9100EN includes intelligent battery charging, mains and battery monitoring with a volt free relay contact fault output for remote monitoring.
The 9100EN output features electronic short circuit protection under both mains and standby battery operation.
Maximum battery life is assured through continuous active battery monitoring and the use of an intelligent charger with temperature compensated final float phase depending upon battery condition.
Deep discharge protection prevents premature battery failure when operating from standby for extended periods.
The inclusion of LED status indicators provides quick diagnostics to the user and/ or engineer.
The 9100EN power supply is capable of charging a battery up to 2 x 12V 3.3Ah capacity.
| Rated Voltage | 85 – 264V ac rms |
| Rated Frequency | 50 to 60 Hz |
| Rated Current | 600mA rms |
| Max Inrush Current | 20A at 240V from cold |
| Max Quiescent Load, Imax_a | 750mA (batteries charging) |
| Max Alarm Load, Imax_b | 1A (batteries not charging) |
| Minimum Load, Imun, panel only | 5mA |
| Current taken from the standby batteries during mains fail | Less than 150µA ( 9100EN is turnde off ) |
| Environmental | Designed to meet IP30 |
| Ambient Temperature Limits | -5 to 50°C |
| Humidity Limits | 90% (non-condensation or icing) |
| Mains Input Fuse (FS1) | 1.6A time delay (not user or engineer replaceable) |
| Battery Type | 2 x 12V 2.2Ah Sealed Lead Acid (connected in series) Dimensions: 66 x 134 x 67mm ±1mm |
| Battery Protection | 1.6A Self resetting ‘fuse’ |
| Output Voltage Range | 24 – 29V dc with mains present, 17 – 29V dc on batteries |
| Output Ripple Voltage | 400mV maximum (peak to peak) at full output load |
| Battery Charge Voltage | 27.3V at 20°C. Temperature compensated at – 40mV °C. Protected by 1.6A self resetting thermal fuse. |
| Battery Charge Current | 250mA (± 25mA) |
| Battery Over Voltage Fault Level | 28.5V dc (nominal) |
| Battery Under Voltage Fault Level | 22V dc (nominal) |
| Battery Low Voltage Cut-off Level | 18.5V dc Battery Voltage (outputs turn off) |
| Battery Monitoring | Charger dip, battery load and internal impedance |
| Maximum Battery Resistance (Ri) | 2Ω (battery internal resistance + lead and connection resistances) |
| Fault Relay Contact | Maximum rating of 1A at 24V DC (resistive load) |
