6000PLUS Discrete Sounder / Sounder VAD

Part No. Various
  • High Output Electrical Sounder
  • Visual Alarm Device (VAD) with 7.5 Coverage Diameter
  • Programmable Volume Control
  • LED Technology for Long Service Life
  • Quick and Simple to Install
  • FAST™ Addressing
  • Loop Powered and Integral Short Circuit Isolator
  • Protec Algo-Tec™ 6000PLUS Protocol
  • Approved to EN54 Part 3, 17 & 23

Product Details

The Protec 6000PLUS Discrete Sounder with optional Visual Alarm Device (VAD) is Loop Powered and utilises the 6000PLUS sensor range common mounting base.

The design is based on LED technology for long life, reliability and low power consumption. Compliant with DDA legislation, this high intensity led VAD warns those with hearing impairments or in noisy environments.

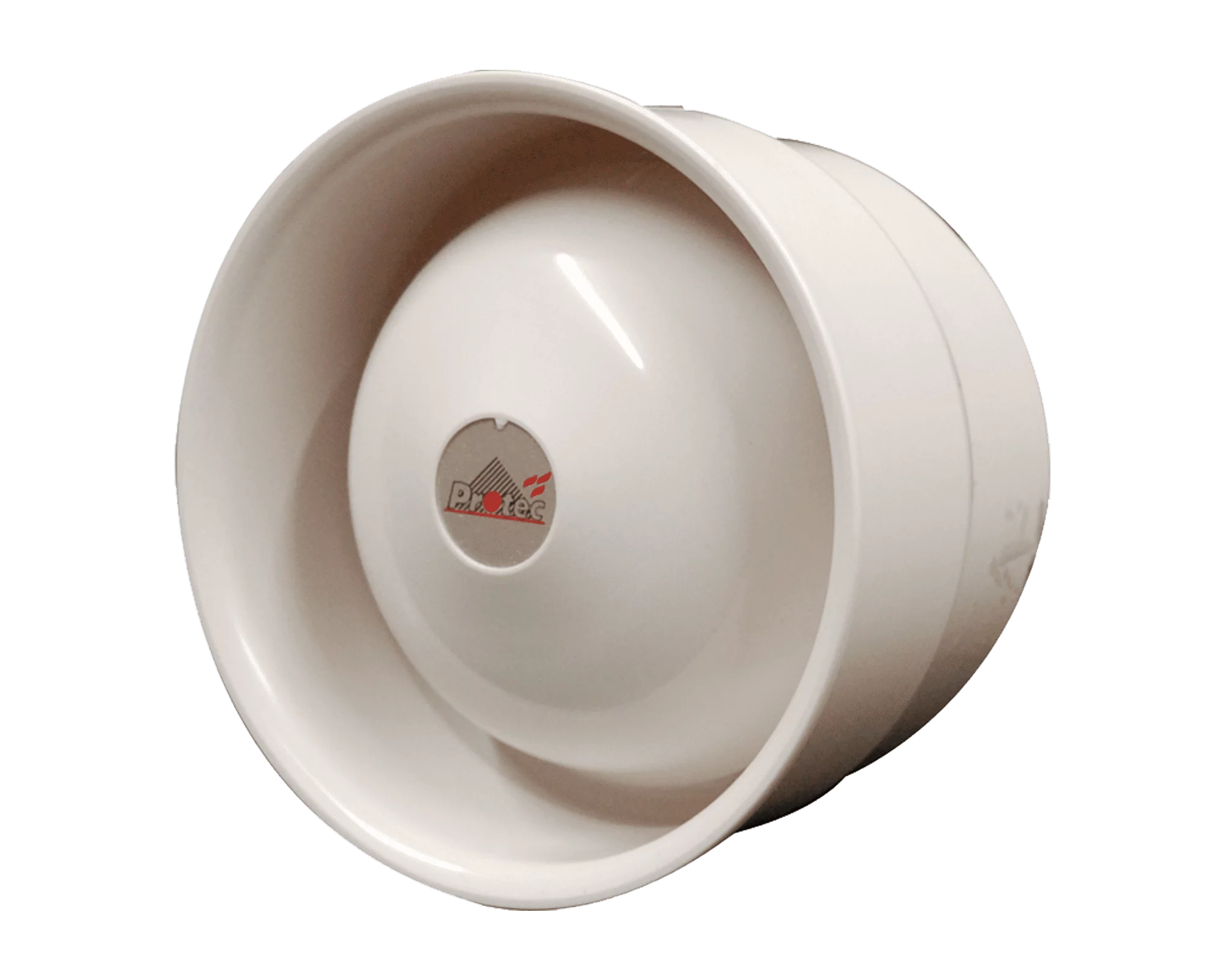

Sounder – The device is equipped with an integrated loop powered electronic sounder with three programmable sounder tone options, constant, pulse or warble, selectable by the control panel along with adjustable volume control. A loop short circuit isolator is also incorporated. The sounder tones are compatible with the full range of Protec 6000 Electronic Sounders.

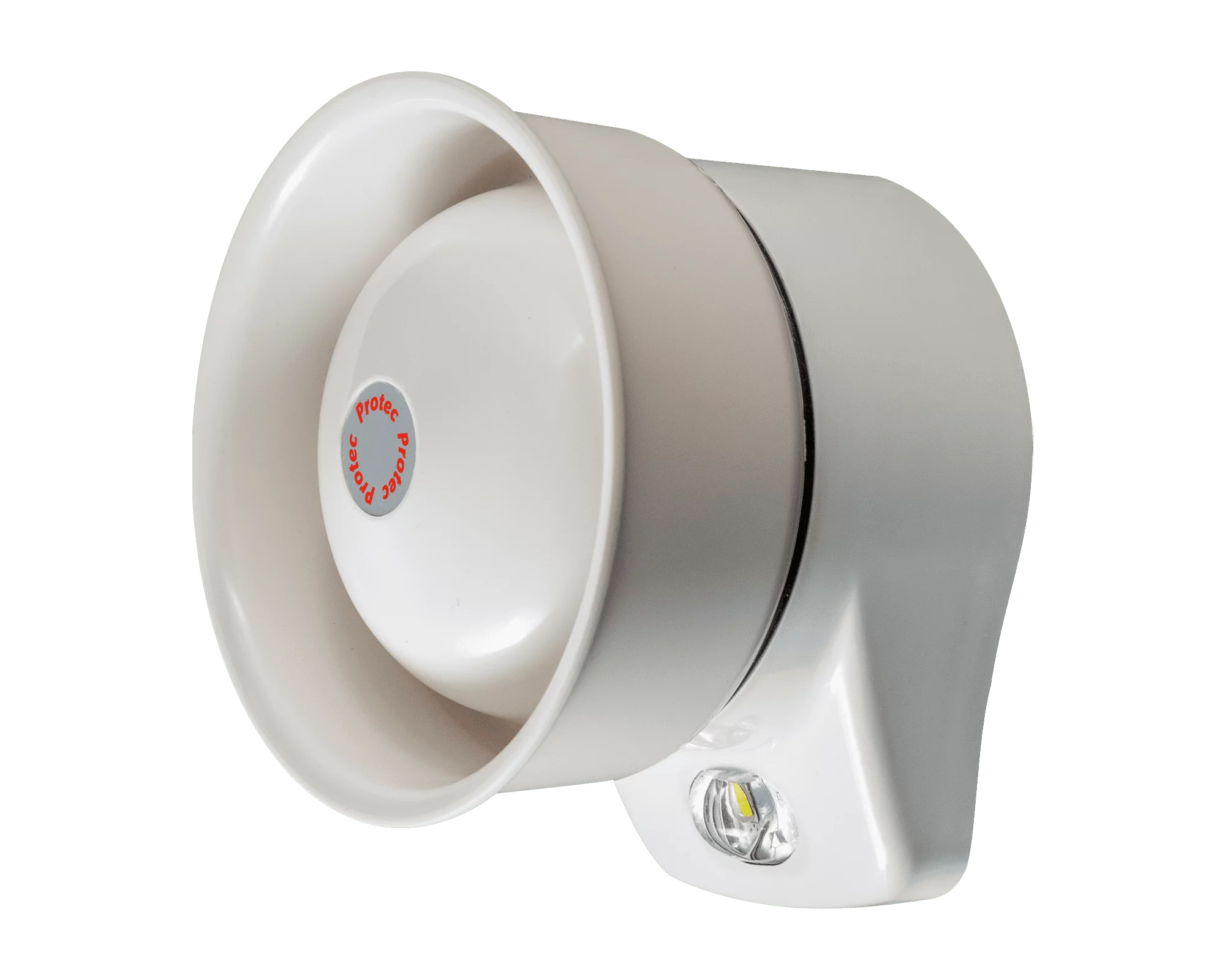

Discrete VAD – The device is designed for installation at a height of up to 3m and adjustable from 3m to 7.5m room coverage to suit all applications.

For smaller areas, the device can be switched down from 7.5m to 3m thus reducing power consumption and maximising the number of devices on the loop.

The product has a unique lens that distributes the light in a cylindrical shape to achieve the required illumination of 0.4lux/m² over the entire room area in accordance with EN54 Part 23.

The design is based on LED technology for long life, reliability and low power consumption. Compliant with DDA legislation, this high in

Tone Options
Warble Tone: 990Hz(250ms), 730Hz(250ms)
Continuous Tone: 990Hz
Pulse Tone: 990Hz(500ms), Silence(500ms)

Tone Volume Options
The tone and volume are selectable at the control panel (measured at one metre):
High: 85dB(A), Mid: 75dB(A), Low: 65dB(A)

BASE Options

– Low profile common mounting base

– Fast fixing semi recessed base

Note – base options above are included in the product approval.


Environment-10°C to +50°C (95% R.H. non condensing or icing)
Ingress ProtectionIP33C
Weight (excluding base)98g
Loop PoweredYes
Loop Standby Load6000P/S – 0.4mA
6000P/SVAD – 0.55mA
Loop Peak Alarm Load6000P/S – 5mA
6000P/SVAD – 24mA
Loop Voltage18 – 28V
Mounting Height (x)3 metres
Coverage(y)7.5m configurable to 3m
Coverage Volume CodeC-3-7.5
Flash Rate0.5Hz white flash
Dimensions (mm)95ø x 54.5H
Device ProtocolAlgo-Tec™ 6000PLUS
Product ApprovalCoCP No: 0359-CPR-0407
DoP No: PFD-CPR-0122 (6000P/S)
DoP No: PFD-CPR-0123 (6000P/SVAD)
Relevant Standard: EN54 Part 3, 17 & 23
CE Marked
