3000 Red Ceiling Mounted VAD
- LED Technology for Long Service Life
- Cost Effective Installation Solution
- Ideal for Bedrooms, Bathrooms and Toilets
- 3 metres (m) Mounting Height
- 7.5m Room Coverage Volume
- Adjustable Flash Rate
- Approved to EN54 Part 23
Product Details

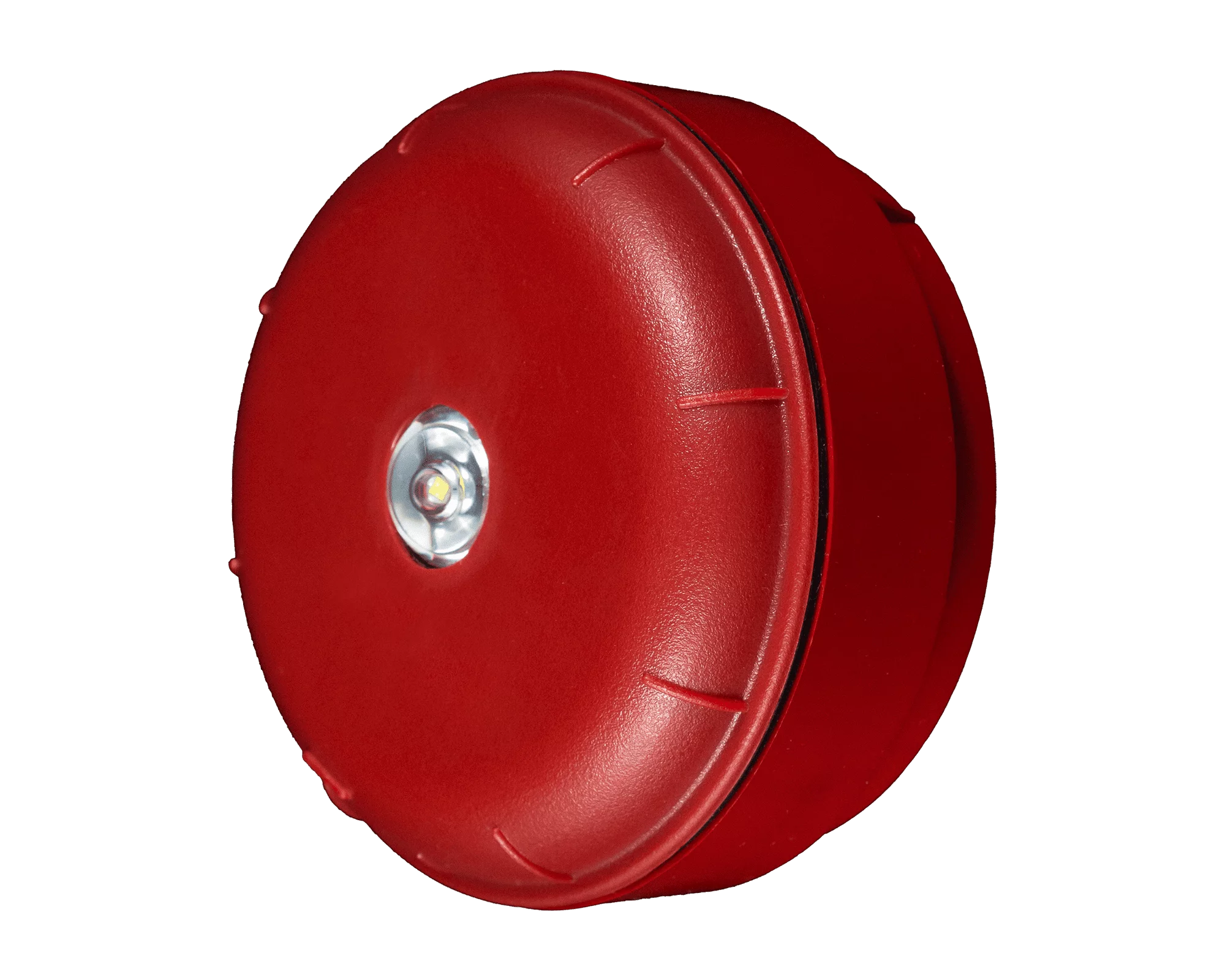

The Protec 3000/VAD/C is a conventional ceiling mounted high intensity Visual Alarm Device (VAD).
The device is catagorised for installation at a height of up to 3m and room coverage of 7.5 x 7.5 (C-3-7.5).
The product has a unique lens that distributes the light in a cylindrical shape to achieve the required illumination of 0.4lux over the entire coverage area in accordance with EN54-23.
The design is based on LED technology for long life, reliability and low power consumption.
The 3000/VAD/C has a Type B (IP33C) + IP65 rating making the product suitable for mounting internally or externally.
Compliance with DDA legislation, this high intensity led beacon warns those with hearing impairments or in noisy environments.
This device is available in a white or red housing with a white flash rate of 1 or 0.5Hz.
| Environment | -10 to 50ºC, 95% R.H (non condensation or icing) |
| Ingress Protection | Type B (IP33C) + IP65 |
| Weight (excluding base) | 120g |
| Voltage | 18 – 28V |
| Mounting Height (x) | 3 metres |
| Coverage (y) | 7.5 metres |
| Coverage Volume Code | C-3-7.5 |
| Flash Rate | 1 to 0.5Hz |
| Mounting | Ceiling |
| Dimensions (mm) | Ø96 x 54(D) |
| Relevant Standard | EN54 Part 23 |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
3000 Red Wall Mounted VADView Product
3000 Red Wall Mounted Sounder inc. VADView Product
3000 White Wall Mounted Sounder inc. VADView Product
3000 White Ceiling Mounted VADView Product

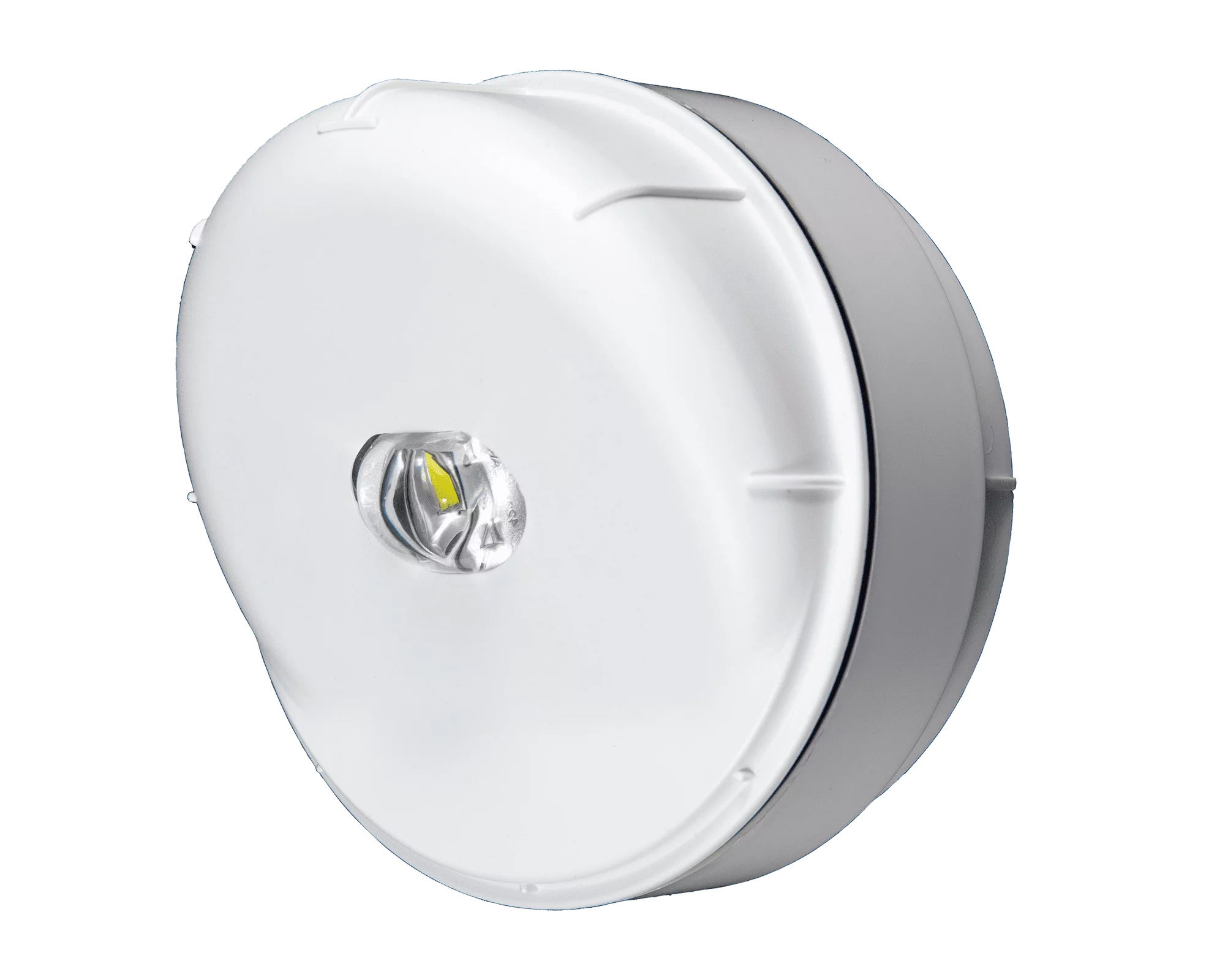

3000 White Wall Mounted VADView Product
