6500 Network Mimic Panel
- Software Programmable
- Fault Monitoring of LED Indications
- RGB Multicolour LED’s
- Fully Customisable
- Modular Construction
- Utilises 6500 Secure Network
Product Details

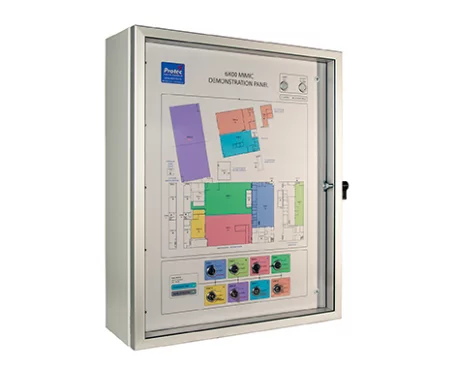

The Protec Network Mimic Panel provides a flexible platform for system indication and control solutions. A Mimic Panel can be configured for zonal indication, plant shutdown, fan control, damper control or other custom solutions.
The Mimic Panel is connected to the 6500 fault tolerant, redundant peer to peer network as part of a single distributed fire system, representing a single node. Multiple Mimic Panels can be placed on the network. Custom panel graphics are produced using industry standard graphical design software. Coloured architectural drawings, plans and custom logos can be directly imported.
A single Mimic Panel can support up to 330 RGB LEDs, up to 300 key/push/ rotary or illuminated switches and 5 clean contact outputs*. The intensity of the LED outputs can be controlled by an ambient light sensor and each indicator is fault monitored.
An in-built setup feature of the Standard 6500 Windows PC configuration tool is used to configure the Mimic Panel (allocating the system input/outputs to LED indicators).
The Software significantly reduces configuration time, increases information integrity and simplifies ongoing changes.
| Power | Internal or External 24V dc nominal power supply charger Working Voltage range 19V dc to 30V dc |
| Environmrnt | -5°C to +40°C operating temperature range 5% to 95% RH (no condensation, or icing) |
| Input / Output | 330 x RGB LEDs, 300 x key/push/rotary or illuminated switches, 20 programmable non monitored inputs, 5 x clean contact outputs, 2 x 1A alarm outputs* |
| Connection Parameters | Network connection to the 6500 RS485 network USB for configuration data download |
| Programmable Features | Software programmable LED colours and combinations Individually programmable switch push and hold times (100ms to 2.5s) Programmable using standard 6500 panel commissioning software |
| System Features | Ambient Light controlled LED Brightness 4 selectable LED modes: ON – ON/OFF – OFF/ON – COLOUR1/COLOUR2 Automatic LED failure detection Programmable LED auto-test interval (1hr to 48hr) |
| Construction | Modular construction techniques Graphical colour aluminium fascia |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
6500 Fire Alarm Control PanelView Product

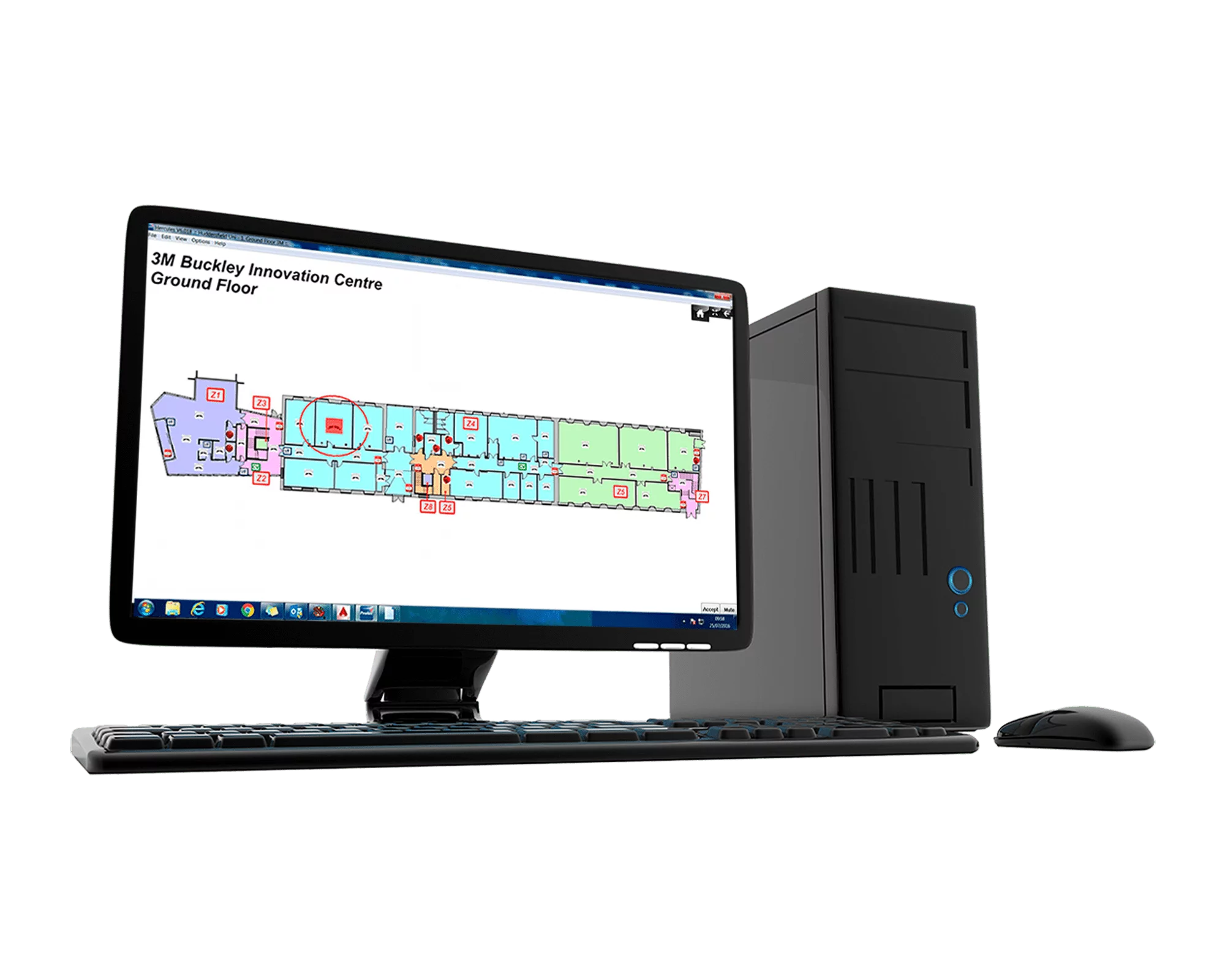

Colour Graphics System Hercules 6View Product
