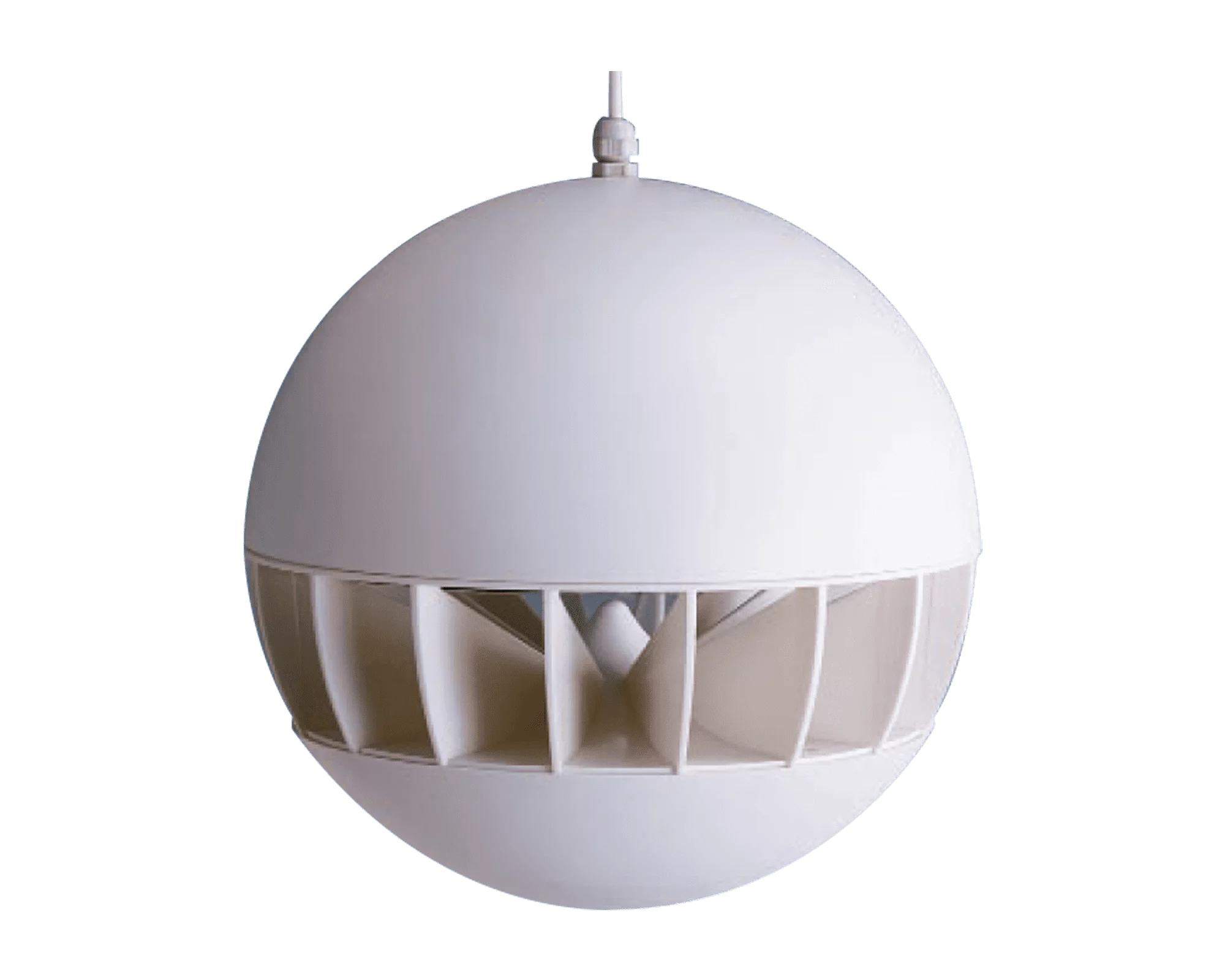

20 Watt ABS Spherical Loudspeaker
- Coverage angles of 360 Horizontal
- Supplied with Metal Braided Cable
- Ideal for Covering Large Areas
- ABS Moulding with UV Inhabitors
Product Details
These modern styled spherical loudspeakers are true omni-directional devices, providing coverage angles of 360 degrees horizontal and 140~160 degrees vertical, giving an even dispersion over the audio spectrum.
This excellent dispersion together with smooth frequency response and carefully controlled performance enable these speakers to offer solutions to many problems that arise in difficult acoustic applications.
Ideally suited for covering large open spaces such as, warehouses, open plan retail complexes, concourses, factories etc. These units are ideal for both speech and background music.
The unit is supplied with a metal braided cable strong enough to carry ten times its weight.
Power Handling | 20 watts |
Rated Input | 100 volt |
Transformer Tappings | 20, 10, 5, 2.5 watts |
SPL (1w/1m) | 94dB |
Max SPL (rated/1m) | 107dB |
Frequency Response | 80Hz – 18kHz |
Dispersion at 1k/2kHz | 360º / 360º Horizontal 160º / 140º Vertical |
Dimensions (diameter) | 254mm |
Material | ABS Moulding |
Weight (inc. packaging) | 2.4 kg |
Colour | White |
Stockcode | 200-037-20 |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
