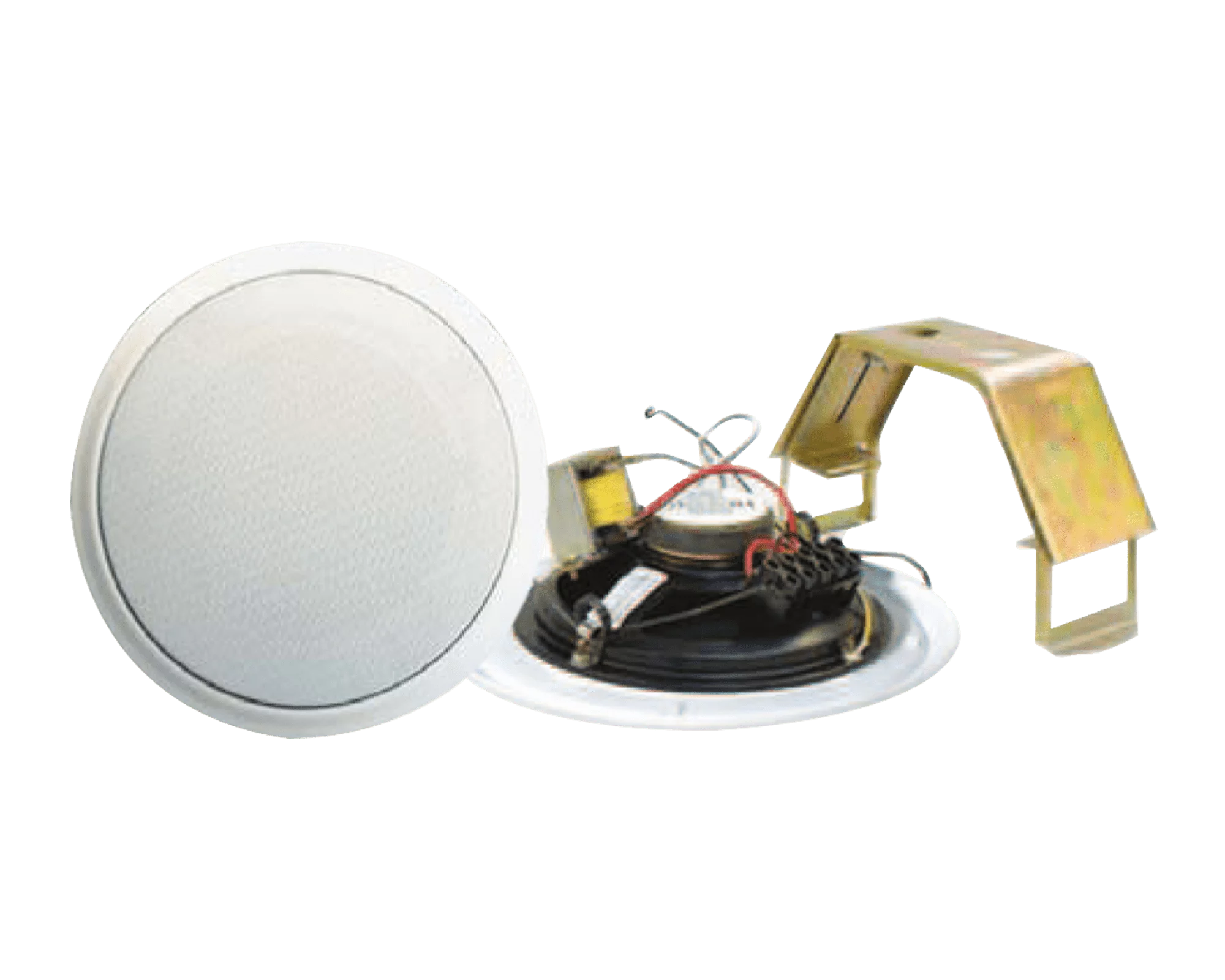

6 Watt, 5inch Ceiling Loudspeaker - EN54-24
- Steel Fire Dome
- 150°C Thermal Fuse
- Ceramic Terminal Block
- Fully compliant with EN54-24
- Cert No: 0359-CPD-0120 Type A
Product Details
5.25″, flush mount ceiling speaker with innovative fitting system for fast and simple installation.
This patented fire dome has been designed for ease of installation offering 1st and 2nd fit. The unique removable top plate on the dome comes complete with ceramic termination that enables the installer to make all cable connections on a flat plate rather than inside the frugal space offered on a standard fire dome. Once the cabling has been completed the supply line can be checked for continuity/earth faults without damaging the loudspeaker. The ceiling loudspeaker can be connected in the knowledge that the cables are sound.
Power Handling | 6 watts |
Rated Input | 100 volt |
Transformer Tappings | 6, 3, 1.5, 0.75, 0.25 watts |
SPL (1w/1m) | 95dB* |
Max SPL (rated/1m) | 102dB* |
Frequency Response | 150Hz – 18kHz |
Dispersion at 1k/2kHz | 180° / 120º |
Dimensions (diameter x depth) | 189mm x 116mm |
Cutout Size (diameter) | 164mm |
Material | Steel |
Weight (inc. packaging) | 1.3 kg |
Colour | White RAL9016 |
Stock Code | 200-062-18-CEN |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
- 6 Watt Ceiling LoudspeakerView Product
- 6 Watt, 6inch Ceiling Loudspeaker – EN54-24View Product

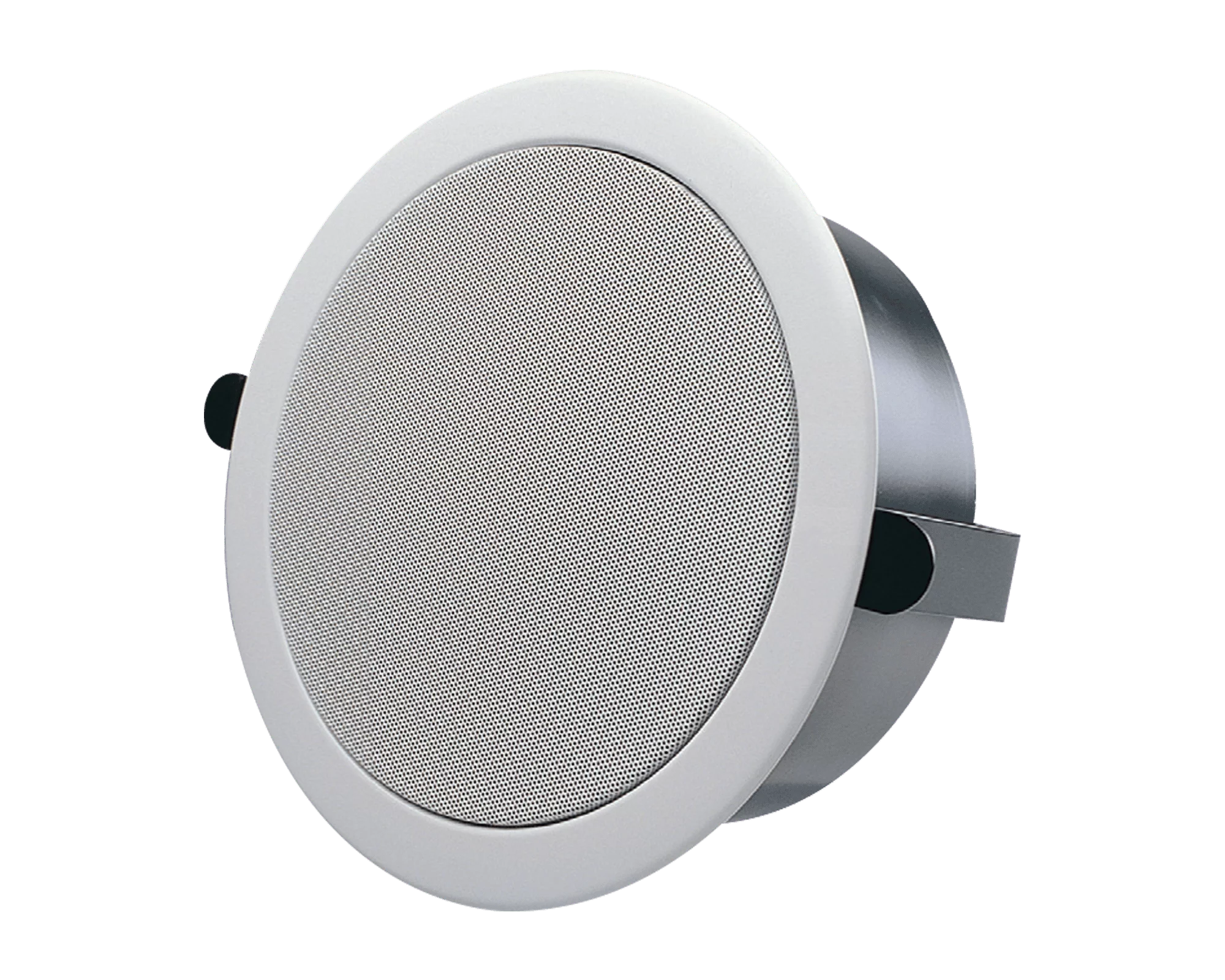

- 20 Watt Co-Axial Ceiling LoudspeakerView Product
