6000PLUS Discrete Talking Sounder / Talking Sounder VAD

Part No. Various
  • Integrated Voice Enhanced Sounder
  • Visual Alarm Device (VAD) with 7.5m Coverage Diameter
  • Programmable Message Selection
  • LED Technology for Long Service Life
  • Quick and Simple to Install
  • FAST™ Addressing
  • Loop Powered and Integral Short Circuit Isolator
  • Protec Algo-Tec™ 6000PLUS Protocol
  • Approved to EN54 Part 3, 17 & 23

Product Details

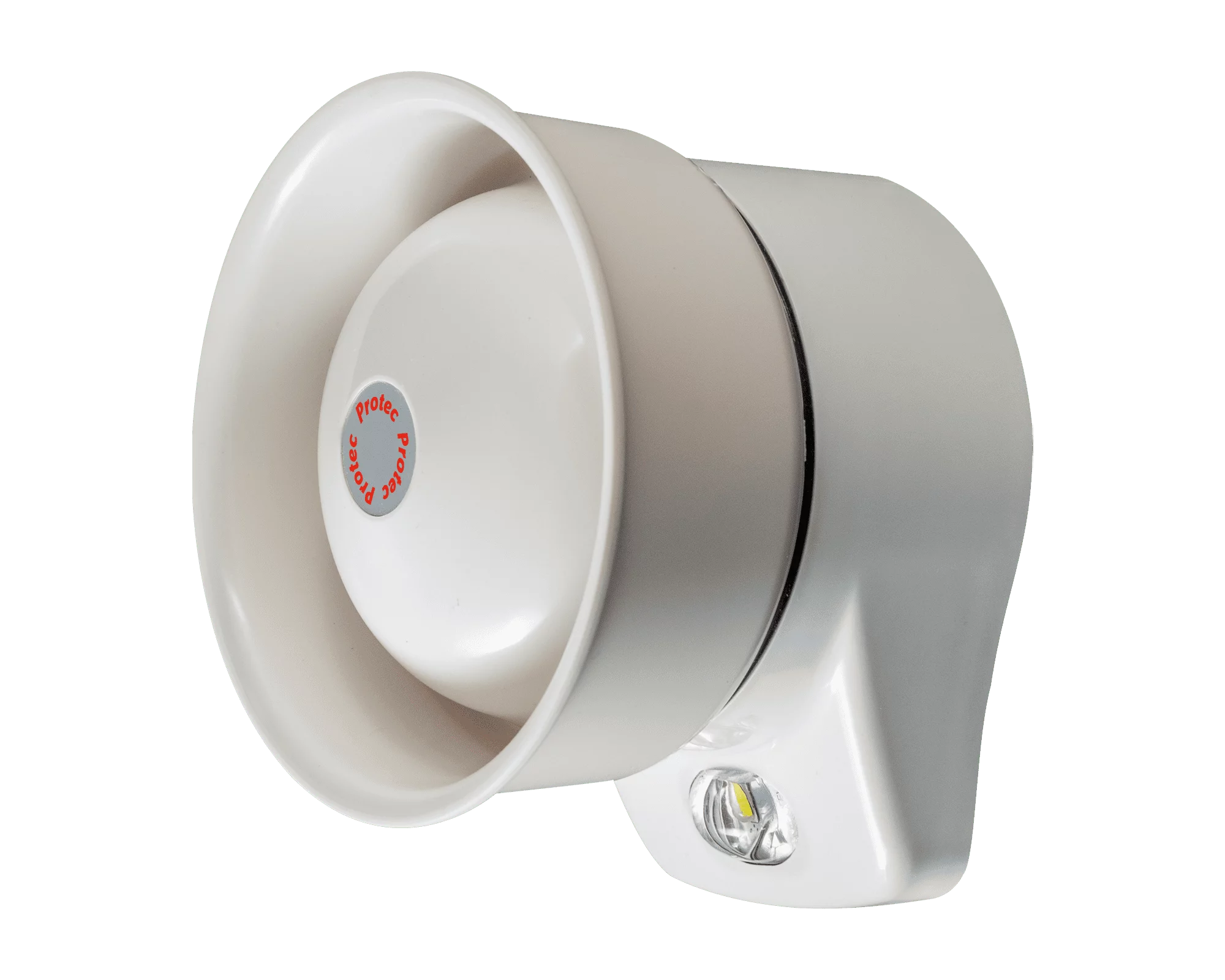

The Protec 6000PLUS Discrete Talking Sounder with optional Visual Alarm Device (VAD) is loop powered and utilities the 6000PLUS sensor range common mounting base.

Talking Sounder – for the ultimate method of alerting building occupants of the incidence of an emergency, the Protec Algo-Tec 6000PLUS Discrete Sounder is equipped with an integrated voice enhanced sounder. The Talking Sounder is capable of delivering synchronised alert and evacuate messages around a building, removing any ambiguity, particularly for anyone unfamiliar with the building alert and evacuation strategy, enabling a more prompt and safe building evacuation.

Discrete VAD – The device is designed for installation at a height of up to 3m and adjustable from 3m to 7.5m room coverage to suit all applications.

For smaller areas, the device can be switched down from 7.5m to 3m thus reducing power consumption and maximising the number of devices on the loop.

The product has a unique lens that distributes the light in a cylindrical shape to achieve the required illumination of 0.4lux/m² over the entire room area in accordance with EN54 Part 23.

The design is based on LED technology for long life, reliability and low power consumption. Compliant with DDA legislation, this high intensity led beacon warns those with hearing impairments or in noisy environments.

Tone Options
Warble Tone: 990Hz(250ms), 730Hz(250ms)
Continuous Tone: 990Hz
Pulse Tone: 990Hz(500ms), Silence(500ms)

Tone Volume Options
The tone and volume are selectable at the control panel (measured at one metre):
High: 85dB(A), Mid: 75dB(A), Low: 65dB(A)

View Talking Sounder Table

BASE Options

6000PLUS/BASE
– Low profile common mounting base

6000PLUS/FFBASE
– Fast fixing semi recessed base

Note – base options above are included in the product approval.

15LHK0958-01

Environment-10°C to +50°C (95% R.H. non condensing or icing)
Ingress ProtectionIP33C
Weight (excluding base)98g
Loop PoweredYes
Loop Standby Load6000P/TS – 0.4mA
6000P/TSVAD – 0.55mA
Loop Peak Alarm Load6000P/TS – 8mA
6000P/TSVAD – 25mA
Loop Voltage18 – 28V
Mounting Height (x)3 metres
Coverage(y)7.5m configurable to 3m
Coverage Volume CodeC-3-7.5
Flash Rate0.5Hz white flash
IsolatorYes
Dimensions (mm)95ø x 54.5H
Device ProtocolAlgo-Tec™ 6000PLUS
Product ApprovalCoCP No: 0359-CPR-0407
DoP No: PFD-CPR-0124 (6000P/TS)
DoP No: PFD-CPR-0125 (6000P/TSVAD)
Relevant Standard: EN54 Part 3, 17 & 23
CE Marked

Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
